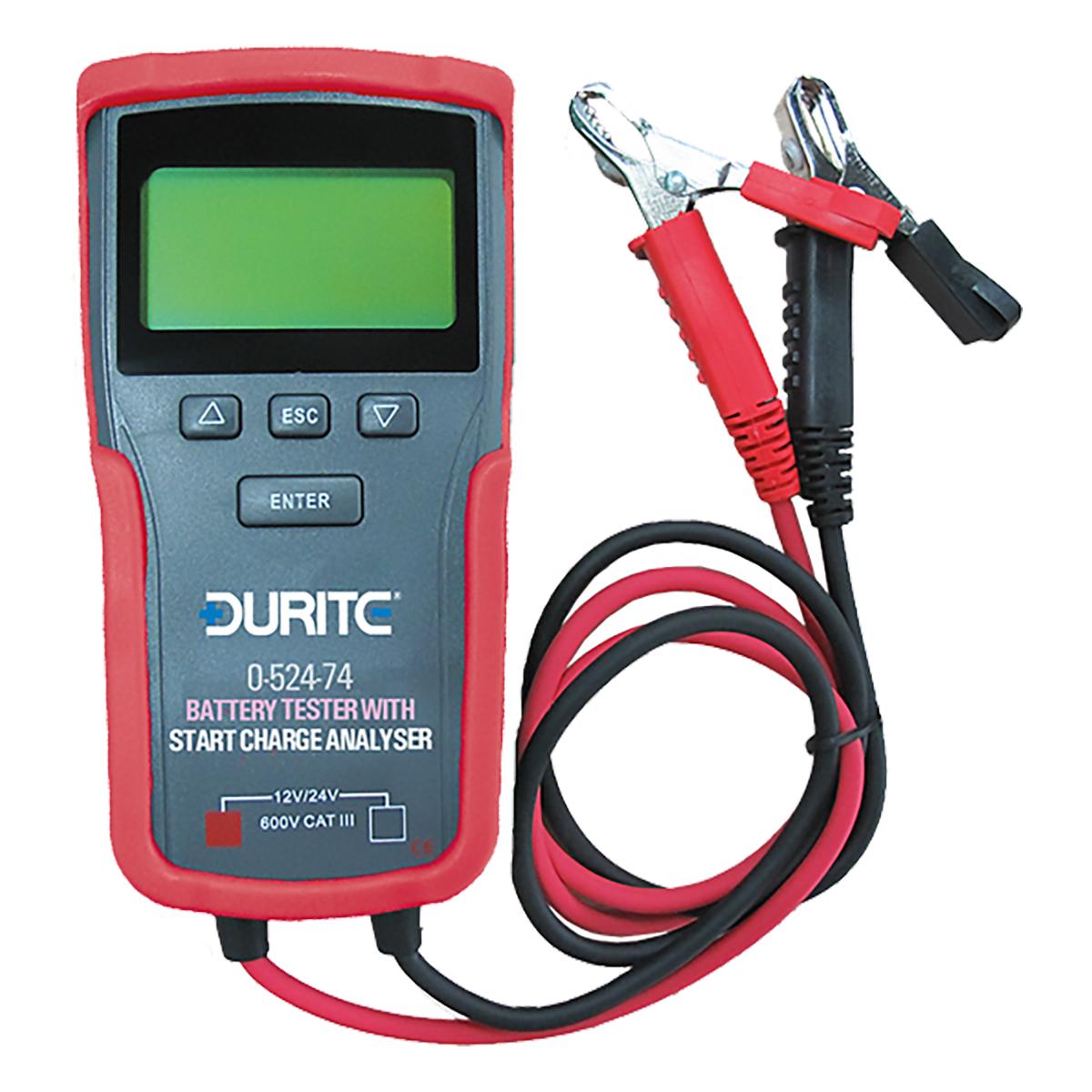

Durite® Electronic Battery Tester 12 / 24V with Start / Charge Analyser
This battery tester is designed to test 12 and 24 volt automotive lead acid batteries including:
WET cell, Lead/Calcium, Sealed, Deep cycle, AGM GEL and maintenance free batteries.
It can also help analyse 12 and 24 volt starter and charging systems and are perfect for both commercial and private vehicle use.
If you're unsure what you're looking for, please feel free to contact us at your convenience.
Call 03300 412187 and speak to one of our friendly advisors today.
Lines Open: 9:30am - 5:00pm Mon/Fri.
-
Durite 0-524-74 At a Glance
- Electronic 12 / 24V Battery Tester
- Start/charge analyser
- Microprocessor controlled
- LCD display
- CE, RoHS approved
-

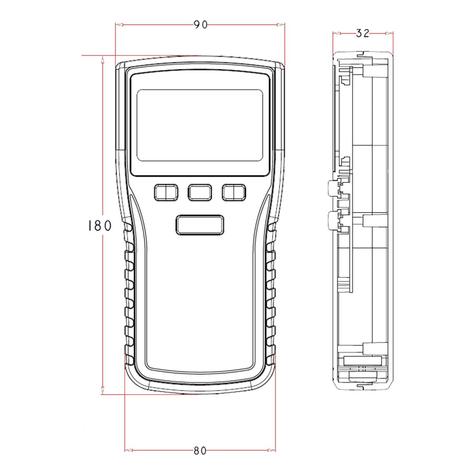

Product Code Durite 0-524-74 Capacity (CCA) SAE, DIN, IEC, EN, JISAh Case Type Part rubber holster Voltage 12 & 24v Length 180mm Width 90mm Height 32mm Weight 400g Warranty 1 Year -
Suitable for CCA Capacity SAE 100 to 1700 DIN 100 to 1000 IEC 100 to 1000 EN 100 to 1700 Ah 3Ah to 200Ah
Features Type 12 & 24 volt battery tester with 12 & 24 volt start/charge analyser Voltmeter 9 to 35 volt dc Battery capacity (CCA) SAE: 100-1700, DIN: 100-1000, IEC: 100-1000, EN: 100-1700, JIS, AH 3-200 Tolerance ± 3% volt, ± 5% CCA Status of charged (SOC) 0~100% Status of health (SOH) 0~100% Display LCD, resolution 128px*64px Protective case Full rubber holster Test lead length 0.8 m Clip material Part insulated steel Clip jaw opening 23 mm (max) Operating temperature 0˚C to 50˚C Weight 400g Dimensions (L)180 x (W)90 x (H)32mm Compliance CE, RoHS -
Durite is the UK's leading brand in auto electrical parts for the commercial and general vehicle aftermarkets, including trucks and vans, marine, agricultural and leisure vehicles.
For almost 80 years, Durite has built an impeccable reputation, manufacturing and supplying high quality parts to the automotive aftermarket. Today, the Durite brand is synonymous with quality products and outstanding customer service.
