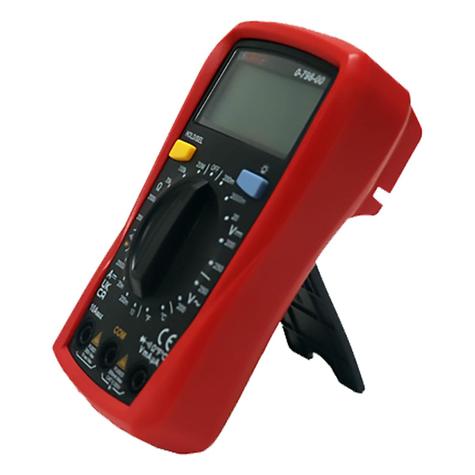

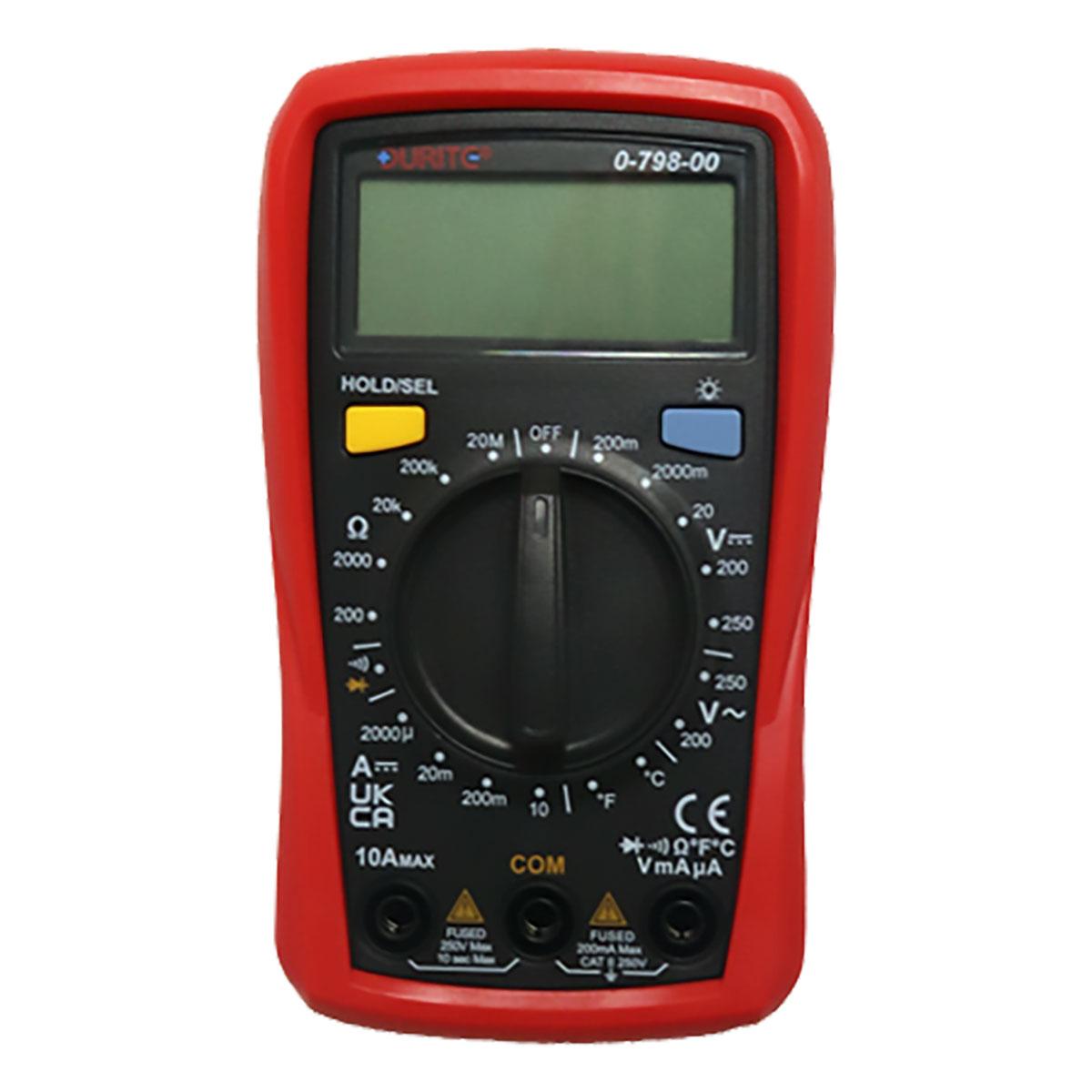

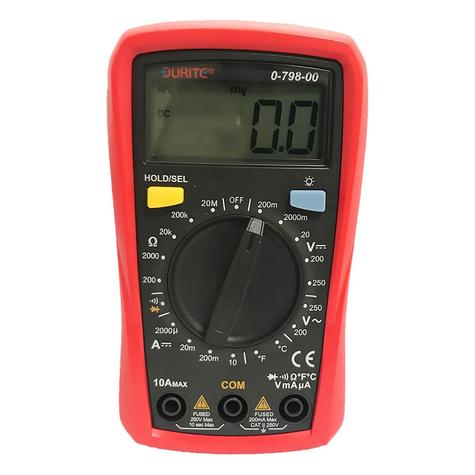

DuriteRegistered 0-798-00 Palm Size Multimeter with temperature measurement.
This Durite multimeter is designed to measure DC and AC voltage, DC current, Resistance, Diode and Audible continuity test and Temperature.

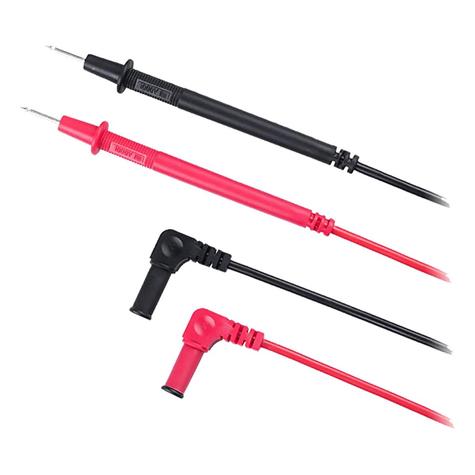

A combined On/Off multi-function switch selects the various functions and ranges. Red and Black leads are provided for electrical measurements, also a separate lead assembly is provided for temperature measurement.
This redefines the performance standards for entry-level digital multimeters. Durites® innovative industrial design ensures that this multimeter can withstand a 2 metre drop. The new LCD display layout provides a clearer display and a better user experience.
-
Durite 0-798-00 At a Glance
- DC Voltage - Five ranges up to 500 volts
- DC Current - Four ranges up to 10 Amps
- AC Voltage - Two ranges: 250 volts and 200 volts
- Resistance - Five ranges up to 20MΩ
- Temperature - Range: -40℃~1000℃
- Diode Test
- Low battery sign
-
Product Code Durite 0-798-00 Length 134mm Width 77mm Height 47mm Weight 206g Warranty 1 Year Product Code Durite 0-798-00 -
Specifications Range UT131C DC voltage (V) 200mV~250V ±(0.5%+2) AC voltage (V) 200V~250V ±(1.2%+3) DC current (A) 2000μA~10A ±(1%+2) Resistance (Ω) 200Ω~20MΩ ±(0.8%+2) Temperature -40℃~1000℃ ±(1%+4)
Features Display count 2000 Auto power off/Auto backlight off √ Diode test/Continuity buzzer √ Drop test 2m Test probe holder √ Range selection Manual General Characteristics Power 1.5V battery (R03) x 2 Display 66mm x 51mm Product net weight 206g Product color Red and grey Product size (L x W x H) 134mm x 77mm x 47mm Standard accessories Test lead, manual, point contact temperature probe -
